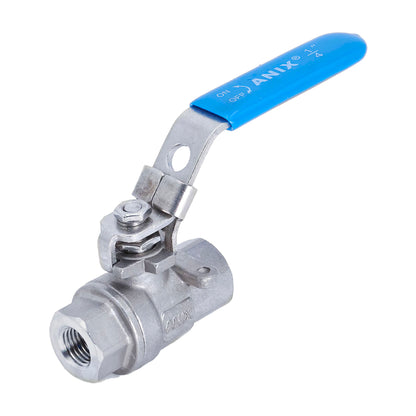

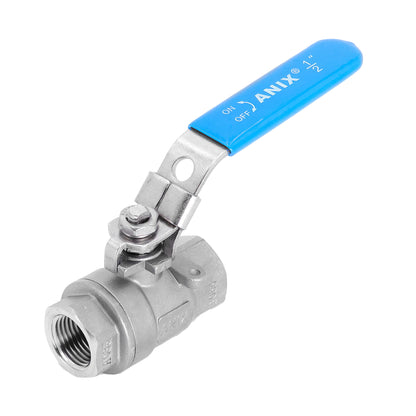

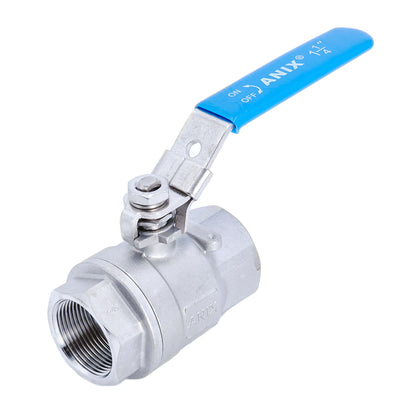

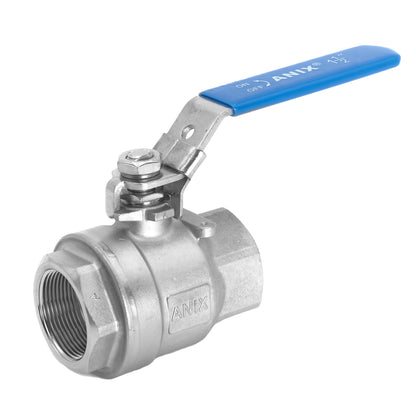

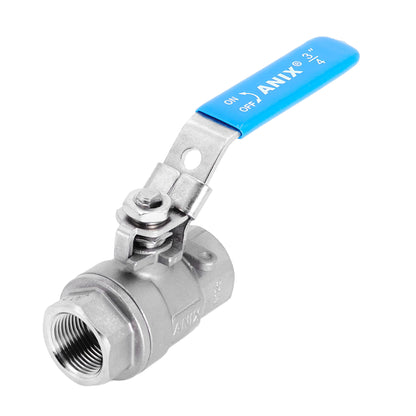

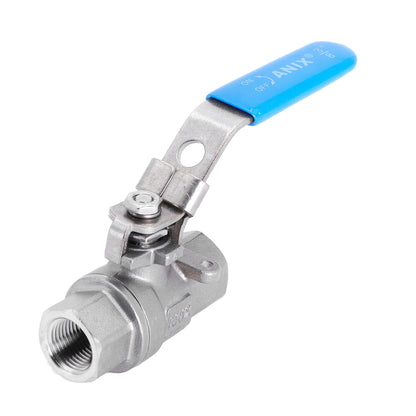

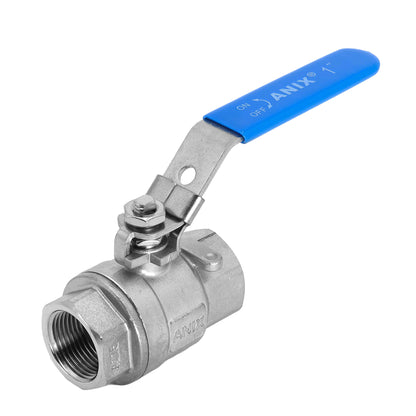

Stainless Steel 316 2 PC Full Port Ball Valve 1000 BSP Size Available: 1/4″ (8mm) to 4” (100mm)
Investment Cast Stainless Steel with Full Port Body
BSP Threaded End Connection
Full port, PTFE & R-PTFE Seat Material, Locking Handle
Seat Material available in PTFE or Reinforced PTFE
Blow-Out-Proof Stem Design
Working Pressure of 1000 Psi
Water, Oil, or Gas Medium Application
PTFE Suitable for Constant Temperature: -20°F to 302°F Celsius: -29°C to 150°C
PTFE Temperature range with peak spikes: -20°F to 360°F Celsius: -29°C to 182°C
R-PTFE Suitable for Constant Temperature: -20°F to 356°F Celsius: -29°C to 180°C
R-PTFE Temperature range with peak spikes: -50°F to 450°F Celsius: -46°C to 232°C
Design fully complies with ASME B16.34
Tested in accordance to API 598
All BSP valves have an estimated delivery lead time of 14 business days.
The Two Pieces Full Port Ball Valve 1000 PSI 316 Stainless Steel comes in various sizes: 1/4" and 3/8" (Non-Seal Welded), and 1/2" to 2" (Seal Welded). Crafted through Investment Casting Stainless Steel, it boasts a Full Port Body and NPT Threaded End Connection (ANSI B1.20). The valve features a full port design with a reinforced PTFE seat material and a locking handle for added security. Its Blow-Out-Proof Stem Design ensures reliability, while the working pressure stands at 1000 PSI, suitable for water, oil, or gas medium applications. It operates within a constant temperature range of -20°F to 356°F, with the capability to withstand temperature spikes from -50°F to 450°F. Designed in compliance with ASME B16.34 standards, it has been rigorously tested according to API 598 requirements.
