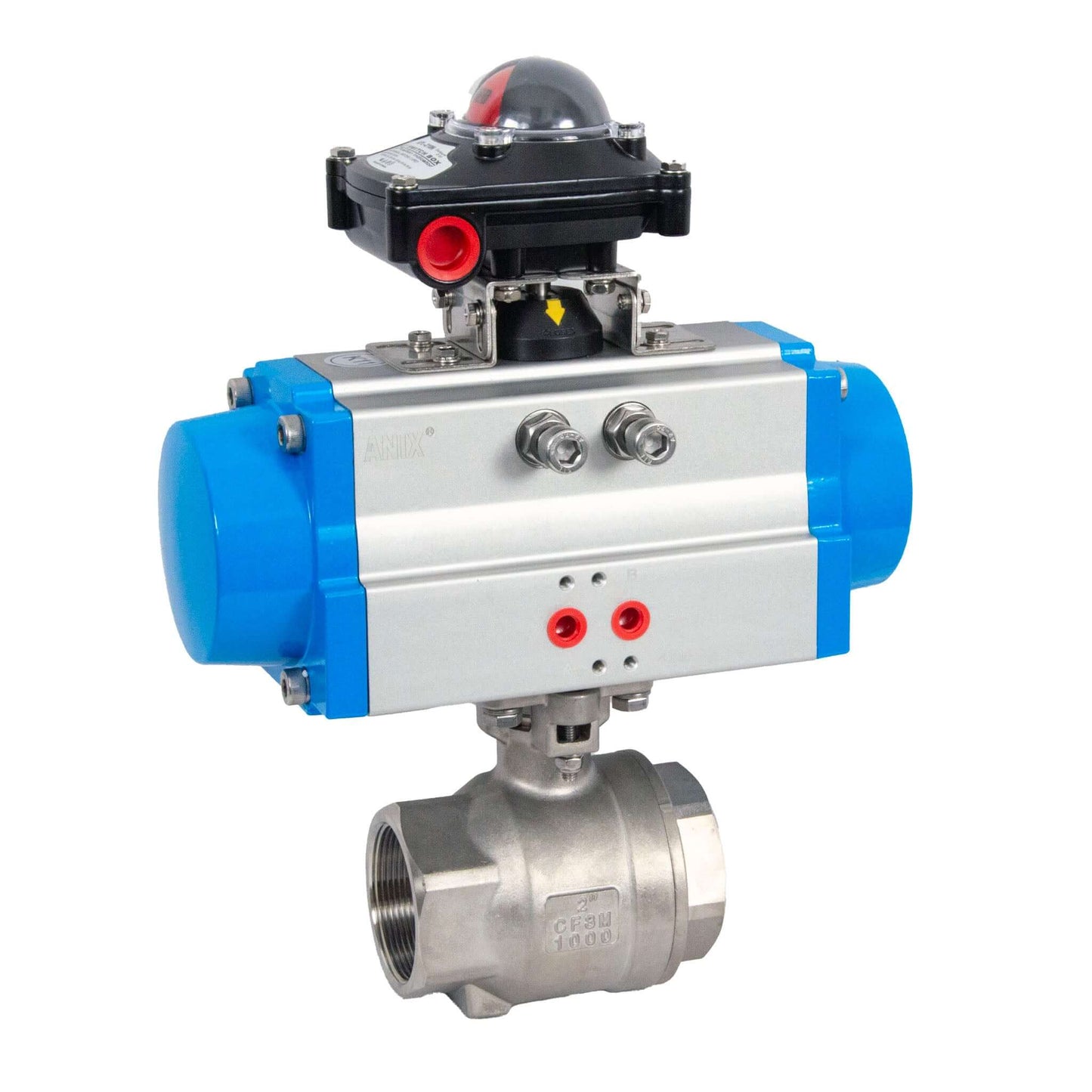

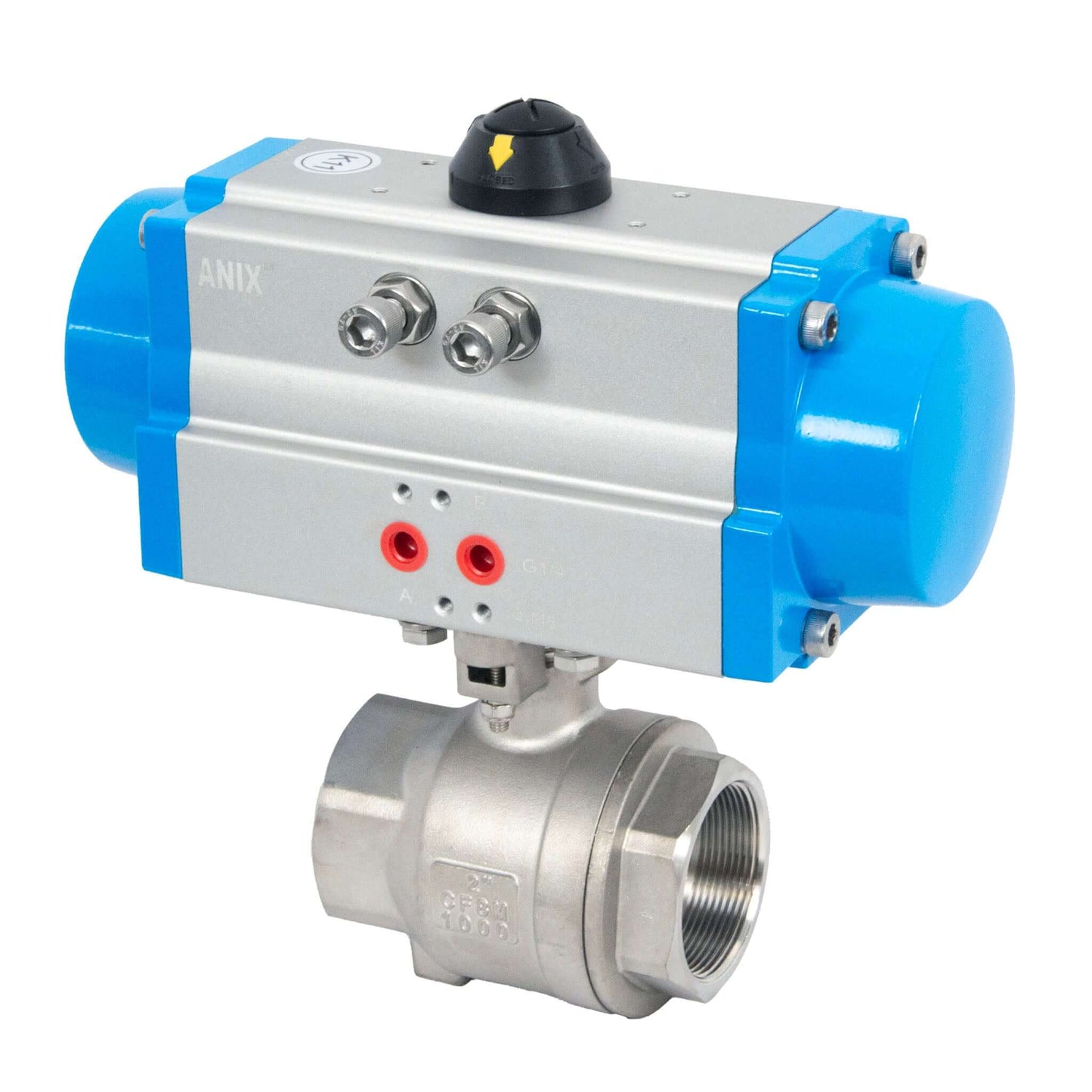

Pneumatic Actuated Full Port FNPT 2PC Ball Valve SS316 - Double Acting/ Spring Return

$339.47 USD

Sale Sold out

Shipping calculated at checkout.

This Pneumatic Actuated Full Port Ball Valve is engineered for reliable control in industrial applications, featuring an investment cast stainless steel body and a reinforced R-PTFE seat for enhanced temperature resistance. Available in sizes from 1/4" to 2", it offers full port design for efficient flow of water, oil, or gas media. Equipped with a pneumatic actuator, the valve provides robust operation with a blow-out-proof stem and locking handle for added safety and security.

Key Features:

Pneumatic Actuator: Double-acting or fail-closed spring return options
Body Material: SS316 stainless steel, investment cast
Sizes: Available in 1/4" to 2"
Connection: NPT threaded ends (ANSI B1.20 standards)
Port Type: Full port for unrestricted flow
Seat Material: Reinforced PTFE (R-PTFE) for high-temperature applications
Pressure Rating: 1000 PSI
Temperature Range: R-PTFE (constant: -20°F to 356°F, spikes: -50°F to 450°F)
Design: Blow-out-proof stem, locking handle, investment cast body for durability
Compliance: Meets ASME B16.34 standards, tested in accordance with API 598
Suitable for: Water, oil, or gas media

**Disclaimer: This product will require 1-3 days for installation and testing before shipping.**

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
Spring Return / With Limit Switch / 1/2"	Spring Return / With Limit Switch / 1/2" $339.47/ea	$0.00	Quantity	$339.47/ea	$0.00

Spring Return / With Limit Switch / 3/4"	Spring Return / With Limit Switch / 3/4" $351.24/ea	$0.00	Quantity	$351.24/ea	$0.00

Spring Return / With Limit Switch / 1"	Spring Return / With Limit Switch / 1" $374.10/ea	$0.00	Quantity	$374.10/ea	$0.00

Spring Return / With Limit Switch / 1 1/4"	Spring Return / With Limit Switch / 1 1/4" $474.75/ea	$0.00	Quantity	$474.75/ea	$0.00

Spring Return / With Limit Switch / 1 1/2"	Spring Return / With Limit Switch / 1 1/2" $556.65/ea	$0.00	Quantity	$556.65/ea	$0.00

Spring Return / With Limit Switch / 2"	Spring Return / With Limit Switch / 2" $619.98/ea	$0.00	Quantity	$619.98/ea	$0.00

Spring Return / Without Limit Switch / 1/2"	Spring Return / Without Limit Switch / 1/2" $249.97/ea	$0.00	Quantity	$249.97/ea	$0.00

Spring Return / Without Limit Switch / 3/4"	Spring Return / Without Limit Switch / 3/4" $259.65/ea	$0.00	Quantity	$259.65/ea	$0.00

Spring Return / Without Limit Switch / 1"	Spring Return / Without Limit Switch / 1" $286.37/ea	$0.00	Quantity	$286.37/ea	$0.00

Spring Return / Without Limit Switch / 1 1/4"	Spring Return / Without Limit Switch / 1 1/4" $383.89/ea	$0.00	Quantity	$383.89/ea	$0.00

Spring Return / Without Limit Switch / 1 1/2"	Spring Return / Without Limit Switch / 1 1/2" $466.65/ea	$0.00	Quantity	$466.65/ea	$0.00

Spring Return / Without Limit Switch / 2"	Spring Return / Without Limit Switch / 2" $529.51/ea	$0.00	Quantity	$529.51/ea	$0.00

Double Acting / With Limit Switch / 1/2"	Double Acting / With Limit Switch / 1/2" $304.76/ea	$0.00	Quantity	$304.76/ea	$0.00

Double Acting / With Limit Switch / 3/4"	Double Acting / With Limit Switch / 3/4" $316.76/ea	$0.00	Quantity	$316.76/ea	$0.00

Double Acting / With Limit Switch / 1"	Double Acting / With Limit Switch / 1" $339.69/ea	$0.00	Quantity	$339.69/ea	$0.00

Double Acting / With Limit Switch / 1 1/4"	Double Acting / With Limit Switch / 1 1/4" $399.99/ea	$0.00	Quantity	$399.99/ea	$0.00

Double Acting / With Limit Switch / 1 1/2"	Double Acting / With Limit Switch / 1 1/2" $462.98/ea	$0.00	Quantity	$462.98/ea	$0.00

Double Acting / With Limit Switch / 2"	Double Acting / With Limit Switch / 2" $519.12/ea	$0.00	Quantity	$519.12/ea	$0.00

Double Acting / Without Limit Switch / 1/2"	Double Acting / Without Limit Switch / 1/2" $216.26/ea	$0.00	Quantity	$216.26/ea	$0.00

Double Acting / Without Limit Switch / 3/4"	Double Acting / Without Limit Switch / 3/4" $224.28/ea	$0.00	Quantity	$224.28/ea	$0.00

Double Acting / Without Limit Switch / 1"	Double Acting / Without Limit Switch / 1" $248.19/ea	$0.00	Quantity	$248.19/ea	$0.00

Double Acting / Without Limit Switch / 1 1/4"	Double Acting / Without Limit Switch / 1 1/4" $308.58/ea	$0.00	Quantity	$308.58/ea	$0.00

Double Acting / Without Limit Switch / 1 1/2"	Double Acting / Without Limit Switch / 1 1/2" $371.79/ea	$0.00	Quantity	$371.79/ea	$0.00

Double Acting / Without Limit Switch / 2"	Double Acting / Without Limit Switch / 2" $431.84/ea	$0.00	Quantity	$431.84/ea	$0.00
