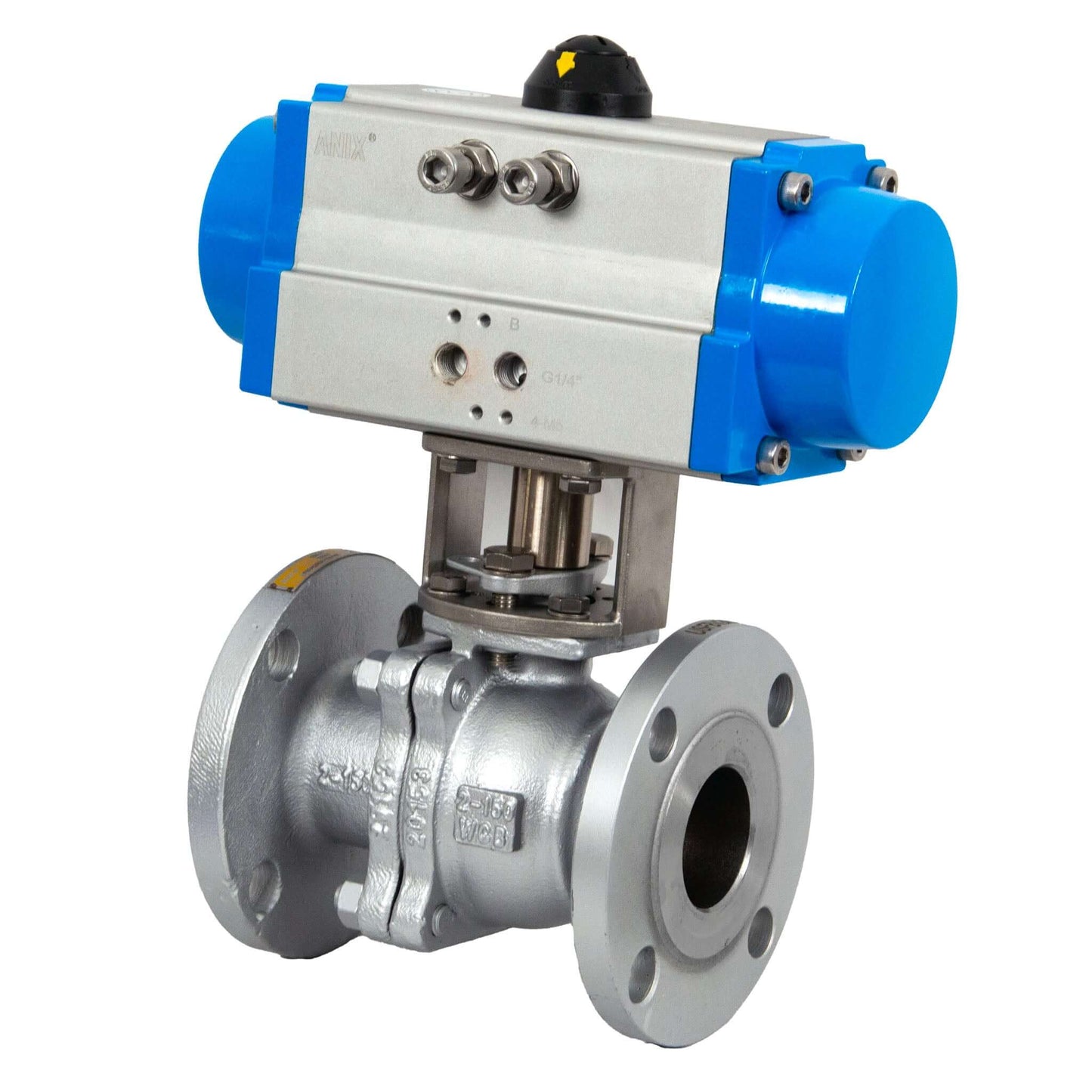

Pneumatic Actuated Ball Valve Carbon Steel A216 Flanged Class 150 - Double Acting or Spring Return

This Pneumatic Actuated Full Port Floating Ball Valve is designed for reliable control in a wide range of industrial applications. Available in sizes ranging from 1/2" to 4", it features a durable WCB A216 carbon steel body and a SS316 ball and stem for enhanced performance. The valve comes with the option of either a double-acting or spring return pneumatic actuator and can include a Limit Switch with Position Indicator as an additional add-on, offering flexibility based on your operational needs.

Key Features:

• Pneumatic Double Acting or Fail Closed Spring Return Actuator with Ball Valve
• Aluminum Actuator Body
• Sizes: 1/2" to 4"
• Body Material: A216 Cast Carbon Steel, SS316 Ball & Stem
• Connection: Flanged ends per ASME B16.5 standards
• Port Type: Full port for unrestricted flow
• Seat Material: R-PTFE for fire-safe and anti-static performance
• Pressure Rating: ANSI Class 150

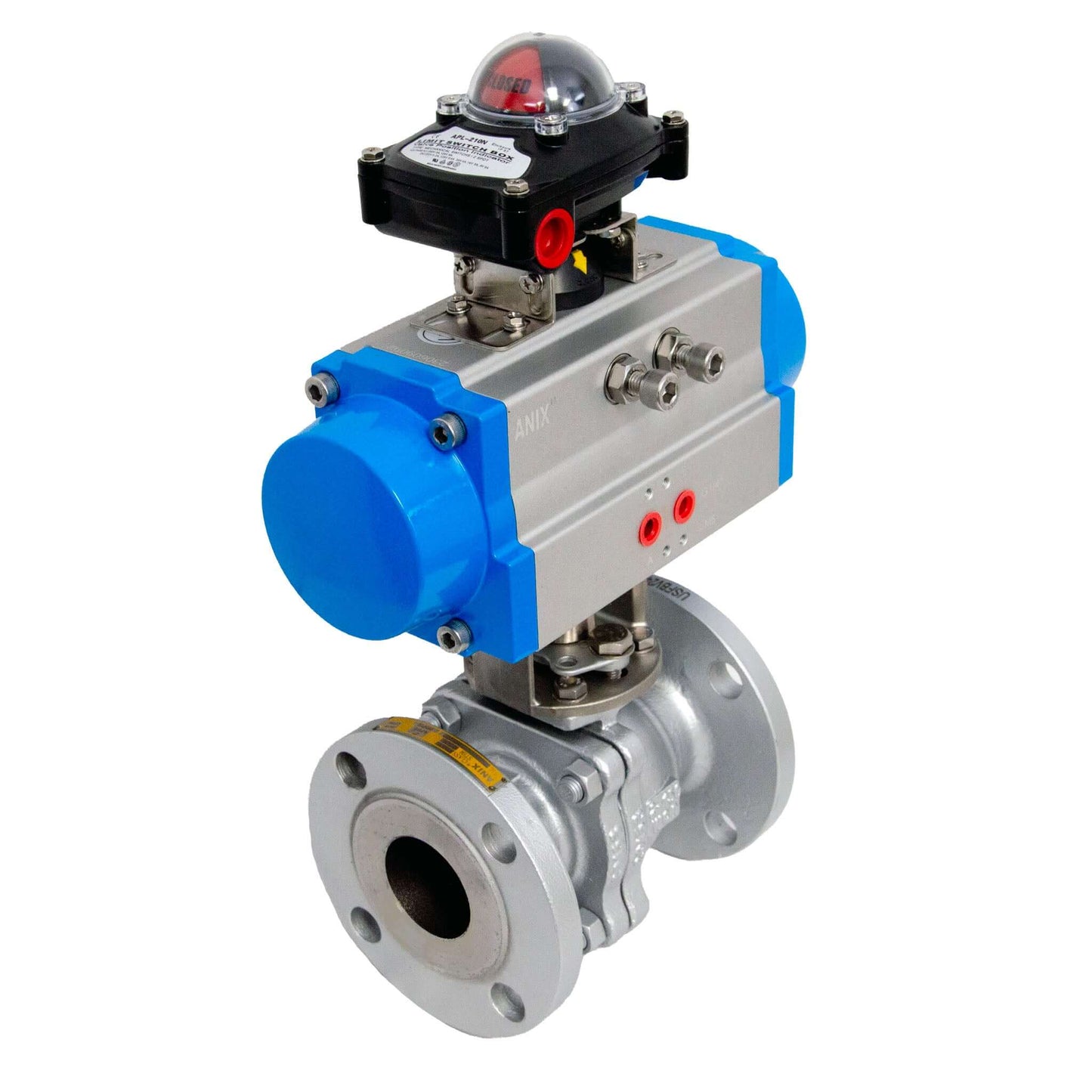

• Additional Features: Lockable handle, graphite packing, fire-safe design
• Compliance: Meets ASME B16.34, API 607 Firesafe, and API 598 standards
• Suitable for: Water, oil, or gas media

**Disclaimer: This product will require 1-3 days for installation and testing before shipping.**
