CF8M Flanged Globe Valve 300# Trim 10

CF8M Flanged Globe Valve 300# Trim 10


Regular price $1,042.05 USD
Regular price Sale price $1,042.05 USD
Sale Sold out
Shipping calculated at checkout.

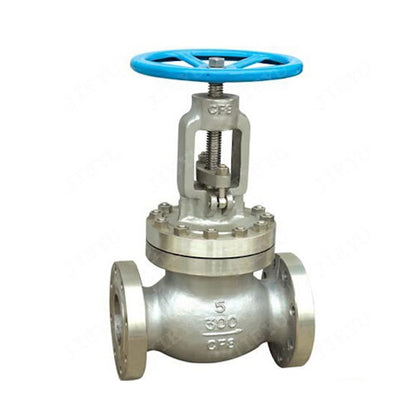

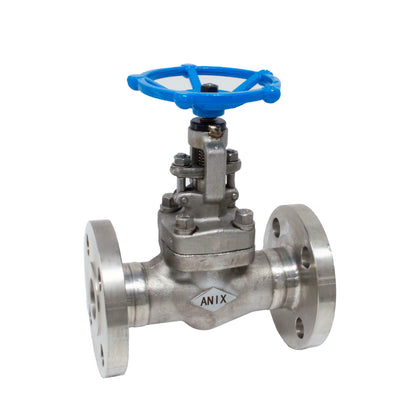

Stainless Steel ANSI 300 Trim 10 Flanged Globe Valve
Sizes available: 1/2 in ~ 12 in

  • Investment Casting Stainless Steel 316
  • OS&Y, Rising Stem, Raised Face Flange End
  • Flanged End Connection according to ASME B16.5
  • Rated to ANSI Class 300
  • Stainless Steel 316 Trim (Trim 10)
  • Steam Rated for 125 PSI WSP
  • Metal to Metal Seat
  • Design and Manufacture according to B16.34
  • Face-to-Face dimensions according to ASME B16.10
  • Inspection and Test according to API 598

Click Here For Cut Sheet

Introducing our Stainless Steel ANSI 300 Trim 10 Flanged Globe Valve, available in sizes ranging from 1/2 inch to 12 inches to meet your specifications. Crafted with precision through investment casting using high-grade Stainless Steel 316, this valve ensures durability and reliable performance in diverse applications. Featuring an OS&Y design with a rising stem and raised face flange end, installation is secure and straightforward. Its flanged end connection, compliant with ASME B16.5 standards and rated to ANSI Class 300, guarantees robust performance under varying pressures. The valve's Stainless Steel 316 Trim (Trim 10) and metal-to-metal seat provide exceptional sealing capabilities. With a steam rating of 125 PSI WSP, it is suitable for steam applications. Designed and manufactured according to B16.34 standards, with face-to-face dimensions in compliance with ASME B16.10 specifications, and subjected to thorough inspection and testing according to API 598 standards, you can trust in the quality and reliability of this globe valve for your critical operations.
