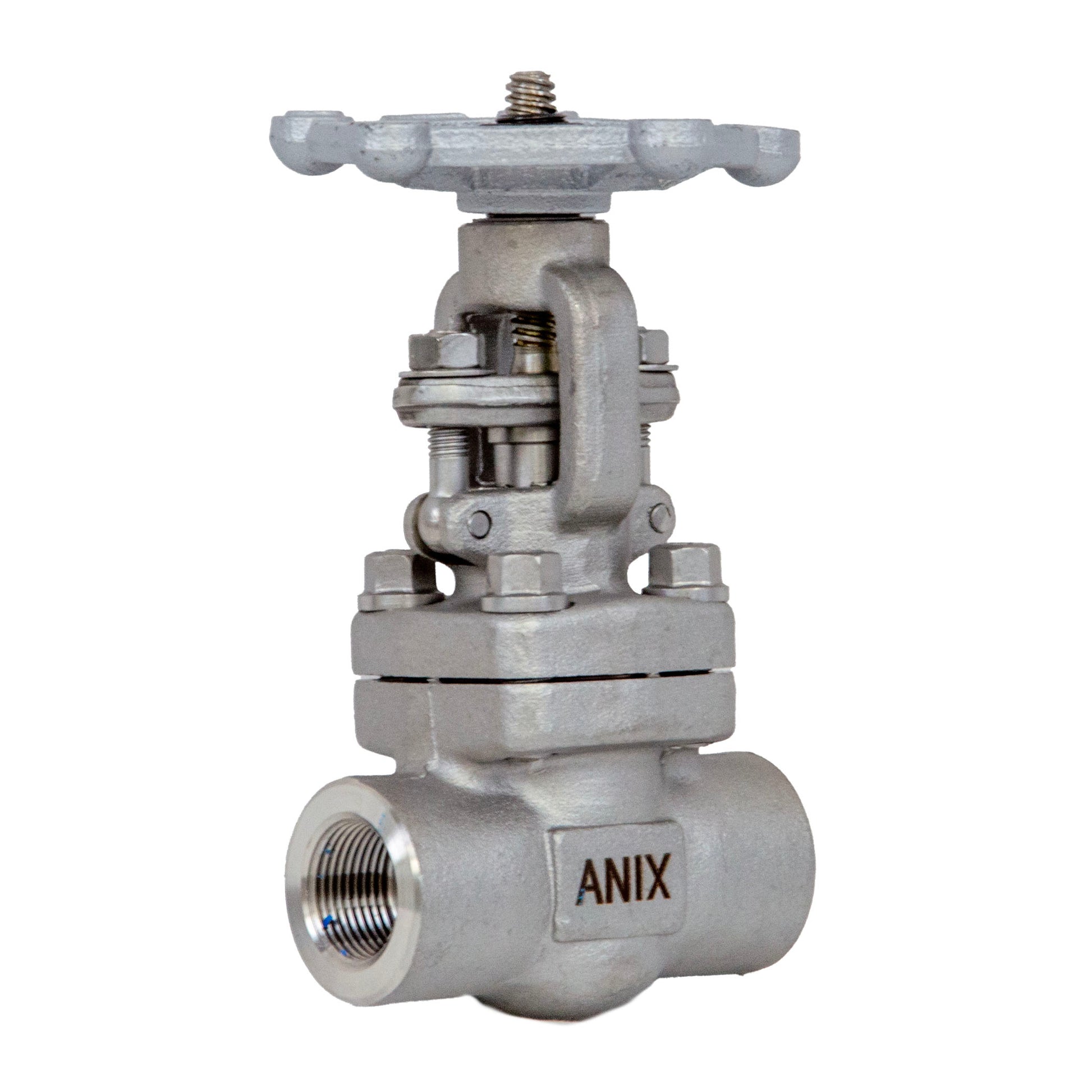

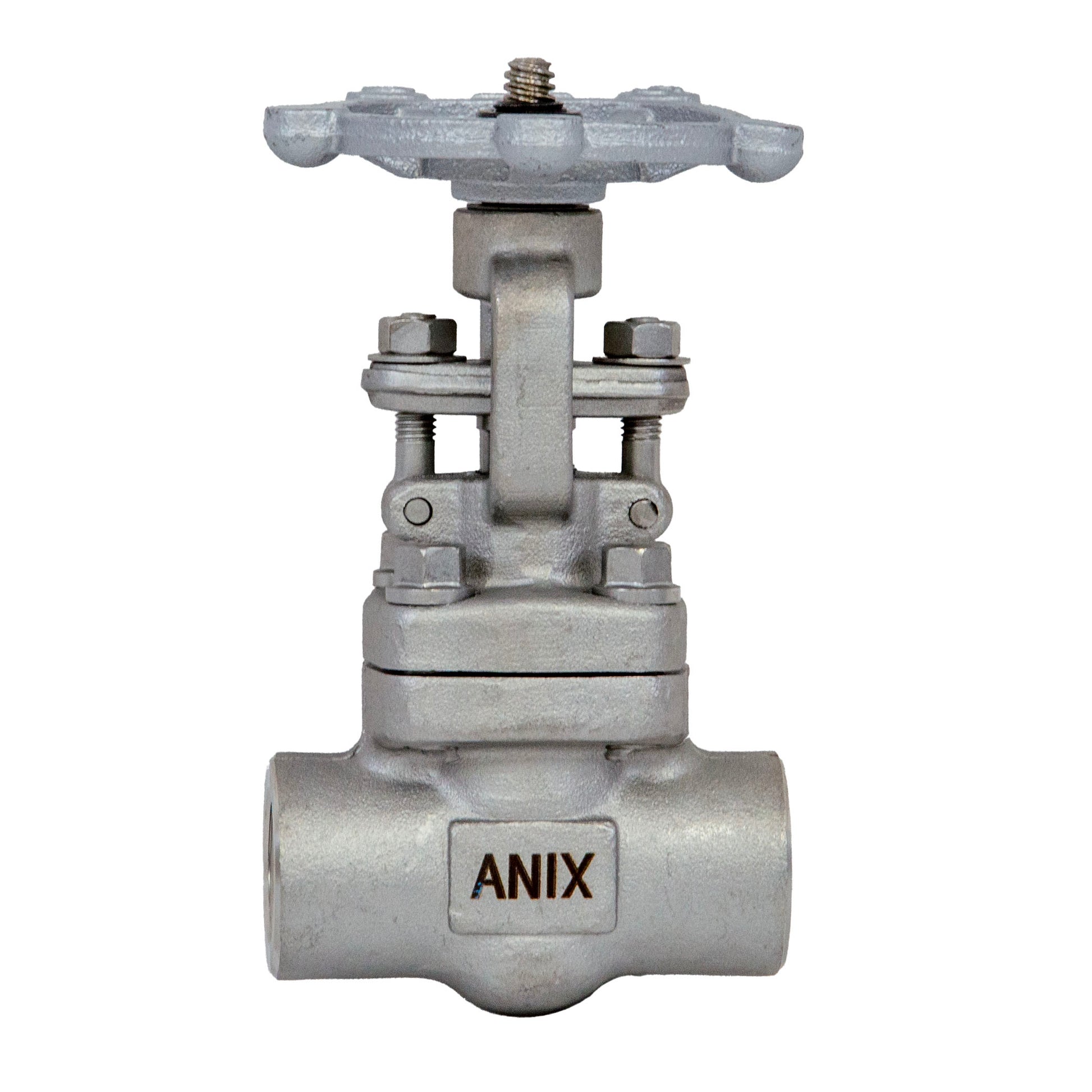

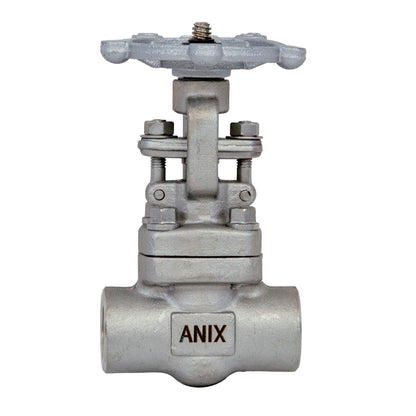

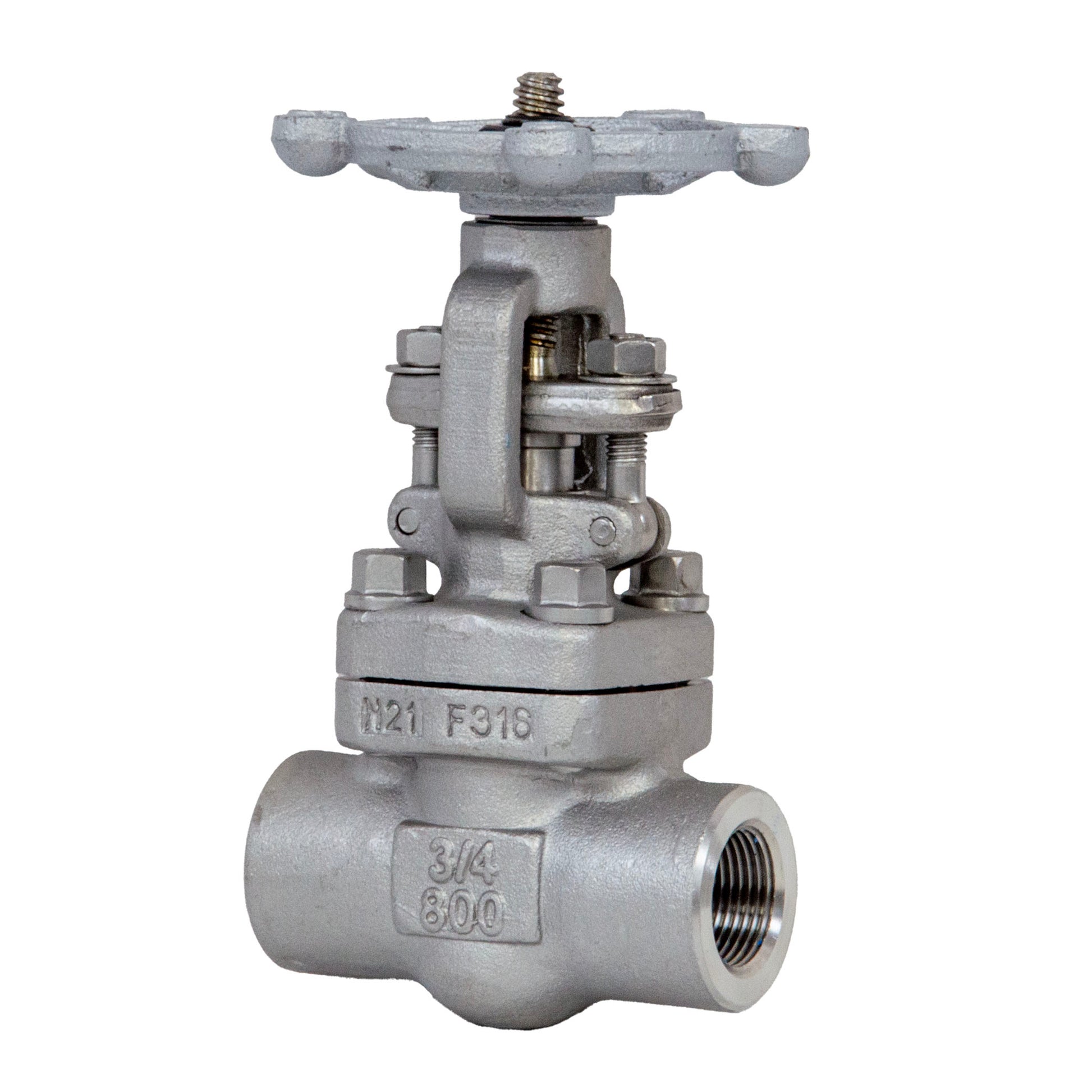

Forged Stainless Steel Class 800 Threaded Gate Valve Sizes available: 1/2 in to 3 in
Forged SS316 Stainless Steel Construction
Rising Stem & Solid Disc Design
Outside Screw and Yoke (OS&Y) Bolted Bonnet
NPT Threaded Connection (ANSI B1.20.1)
Reduced-Port Configuration
Pressure Rating: Industrial Class 800 (1975 PSI)
Temperature Range: -20°F to 797°F
Design & Manufacture: API 602 | Test: API 598
Face-to-Face Dimensions: ASME B16.10
Product Description
Introducing our Forged Stainless Steel Class 800 Threaded Gate Valve, available in sizes ranging from 1/4 inch to 3 inches to meet your specifications. Crafted through high-precision forging with SS316 stainless steel, this valve ensures maximum durability and superior corrosion resistance in the harshest environments.
Featuring a rising stem for visual position indication and an NPT threaded connection, installation is straightforward and secure. With an extreme temperature range suitable for use from -20°F to 797°F, this valve is versatile for critical industrial, marine, and steam applications.
Designed and manufactured according to API 602 standards, with face-to-face dimensions compliant with ASME B16.10 specifications and NPT connections meeting ANSI B1.20.1 standards, you can trust in the elite quality and performance of this forged gate valve for your operations.
